  • HT-501

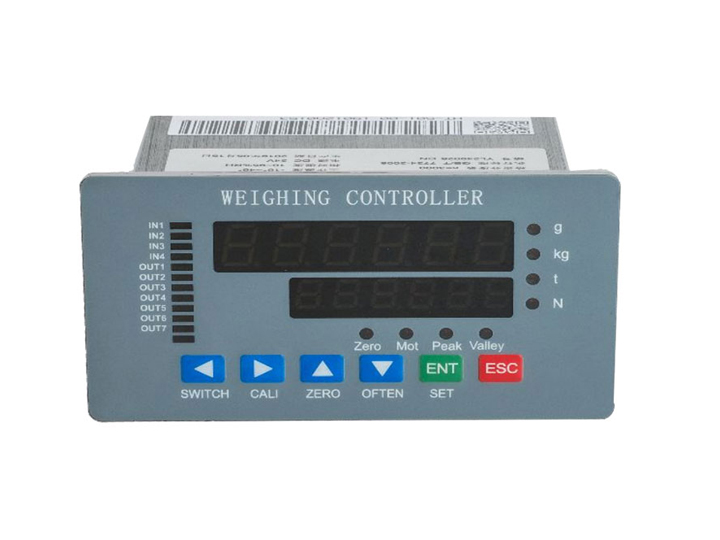

HT-501
关键词:HT-501
所属分类:称重控制仪表
产品概述:Features 主要特点•Communication output: com1:RS232 interface supportsModbus RTU protocol and free protocol•Com2:RS485 interface: up to 32 nodes in parallel,supporting Modbus RTU protocol and free protocol•Protection Level: IP65 (front part of produ…
在线订购
产品详情 图片集锦

Features 主要特点

•Communication output: com1:RS232 interface supports
Modbus RTU protocol and free protocol
•Com2:RS485 interface: up to 32 nodes in parallel,
supporting Modbus RTU protocol and free protocol
•Protection Level: IP65 (front part of product)
•Switching: 2-point relay output, 250VAC/3A resistive load,
3-point transistor output, 24V/1A load capacity, 1 input.
•Analog output: A001:0-10V, 0-20mA, 4-20mA, resolution
1/3000
•通讯输出:com1:RS232接口支持Modbus RTU协议和自
由协议
com2:RS485接口:最多并列32个节点,支持Modbus
RTU协议和自由协议
•防护等级:IP65(产品前面部分)
•开关量:2点继电器输出,250VAC/3A阻性负载,3点晶体
管输出,24V/1A带载能力,1路输入
•模拟量输出:A001:0-10V、0-20mA、4-20mA,分辨率
1/3000

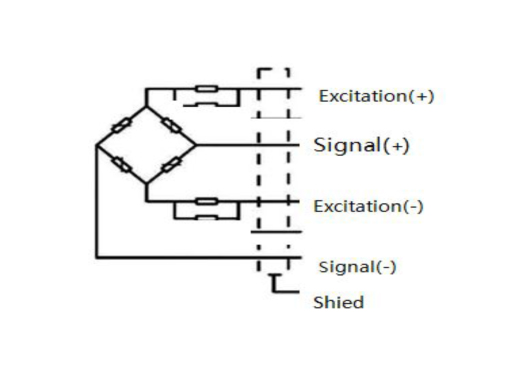

Schematic 接线方式


Red: +input 红色: +激励
Black: -input 黑色: -激励
Green: +output
绿色: +信号
White: -output
白色: -信号

SHIELD: Thick Yellow 浅黄: 屏蔽


Dimensions 尺寸

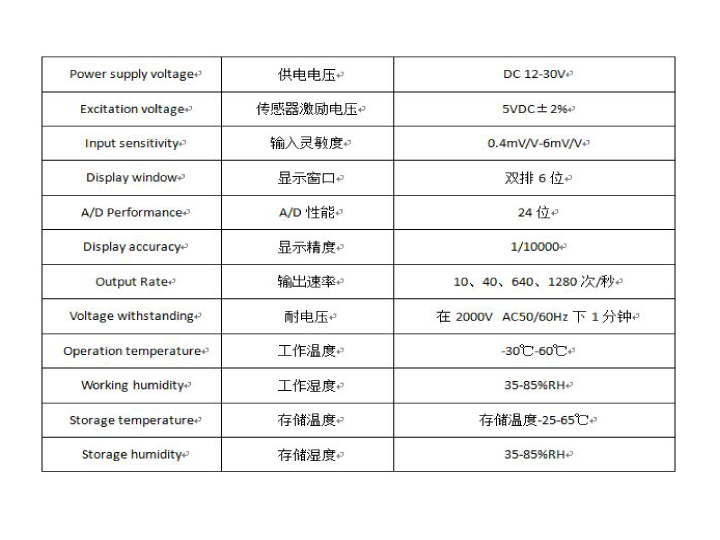

Specification 技术参数
